BIA NOIR power Cable

​Description

​


The Bia Noir power cable is our top of the line power cable with finest quality and craftsmanship.  Furutech αAlpha Pure Copper Triple C (Continuous Crystal Construction) and  NCF Piezo Ceramic Series Silver Plated Carbon Fiber Connectors are used in this premium cable;  together with our our *proprietary graphene nano-composite EMI (conducted and radiated) shielding, the performance of this cable is further enhanced.

​

Features (Furutech’s α(Alpha) PC-Triple C cable)

​

Furutech’s α(Alpha) PC-Triple C is one of a select few of conductors that Furutech engineers have found to excel in sound reproduction. α(Alpha) PC-Triple C is made with Furukawa high-purity oxygen-free copper using a special forging process. Unlike regular OFC (oxygen-free copper), almost all of the impurities of this high-purity OFC have been removed at the micron level through a special casting process unique to Furukawa. Purposely designed and developed for audio signal conductors, α(Alpha) PC-Triple C is flexible, strong and can be drawn into a very fine wire. This new conductor, while not single-crystal like PCOCC, features crystal grain boundaries that are almost totally free of impurities which allows even the smallest of signals to be transmitted. While PCOCC is a single-crystal conductor, it is susceptible to imperfections during production. Since α(Alpha) PC-Triple C employs a fixed angle continuous transport forging process, pressure is applied to the high-purity oxygen-free copper tens of thousands times. This ensures that any crystal grain boundaries that were present in a vertical direction become longitudinal, and the crystals become connected and uniform in their direction. This process also helps to remove the imperfections that are often found in PCOCC, which create a more conductive and acoustic conductor. The resulting conductor has an extremely fine resolution down and through the very low noise floor, improved sound staging and image palpability, a musical, attractive, “round” midrange, tight and controlled bass, plus power and dynamics to spare to set your music alive!

​

Features (Furutech’s NCF Piezo Ceramic Series Silver Plated Carbon Fiber Connectors)

​

Furutech’s Pure Transmission FI-50 NCF Piezo Ceramic series connector bodies and housings feature several breakthrough construction techniques. A multilayer nonmagnetic stainless steel and silver plated carbon fiber shell incorporates a special damping and insulating acetal copolymer. Furutech settled on stainless and silver plated carbon fiber for the outer housing after extensive listening sessions with Japanese industry figures and audiophiles. The body of the connectors incorporates an “active” damping material: Nano Crystal² Formula - Nano Crystalline, Ceramic and Carbon Powder.  Incorporated into select Furutech products, Nano Crystal² Formula --- NCF is comprised of a special crystalline material that has two “active” properties. First, it generates negative ions that eliminate static and secondly, it converts thermal energy into far-infrared. Furutech then combines this remarkable crystalline material with nano-sized ceramic particles and carbon powder for their additional “Piezo Effect” damping properties. The resulting Nano Crystal² Formula is the ultimate electrical and mechanical damping material – only found in Furutech products!  Nano Crystal² Formula eliminates static, “interconverts” thermal, mechanical and electrical energy and damps vibrations—all for the finest Furutech Pure Transmission signal imaginable.  In addition, together with our *proprietary graphene nano-composite EMI (conducted and radiated) shielding, the performance of Bia Noir cable has taken to another level.



​

Specification



Bia Noir Cable Wire:

​

• α(Alpha) PC Triple C OFC Conductor 12AWG (2.2mm) diameter

• insulation: Special grade Flexible PVC, 5.0mm diameter

• inner Sheath: Flexible PVC approx. 12.0mm diameter

• shield: 0.12mm OFC Wire Braid

• outer Sheath: RoHS Compliant Flexible PVC

• overall diameter 16.0mm

​

Bia Noir Cable Connectors:

​

• α(Alpha) Pure-Copper Rhodium-plated Conductor

• Earth (Ground) Jumper System (US Patent No.: 6,669,491/European:EP1445837)

• damping material nylon/fiberglass body with a special anti-resonance nano-sized crystalline, piezo ceramic particles and carbon

• multilayered nonmagnetic stainless steel and silver plated carbon fiber housing incorporating an acetal copolymer. The best of damping and insulation materials improve frequency extension and tonal balance

• Specified for cable diameters from 6mm to 20mm

• FI-50 NCF Body length 44mm x 34.5mm diameter / 80.3mm overall length

• metal cable clamp improves grip and reduces mechanically and electrically induced distortion

• *proprietary graphene nano-composite EMI (conducted and radiated) shielding

​

Graphene nano-composite shield technical details*:



• graphene compounded polymer resin layer reinforced by pure copper foil,

• graphene particle size: 1-5 µm,

• graphene number of layers: ≤ 10

​

AC Input Voltage Range:



Voltage Rating: 100 -125V, 15A



Connector Type:



• AC US NEMA 5-15 male,

• IEC C-13 female



Sheathing:



• two (2) layers 10 mil polyethylene terepthalate (PET) monofilament compounded with an organic flame spread inhibitor yarns sheathing throughout cable

• Mil-202, FAR 25, FMVSS 302, VW-1, FR-1

• RoHs compliant



Length:

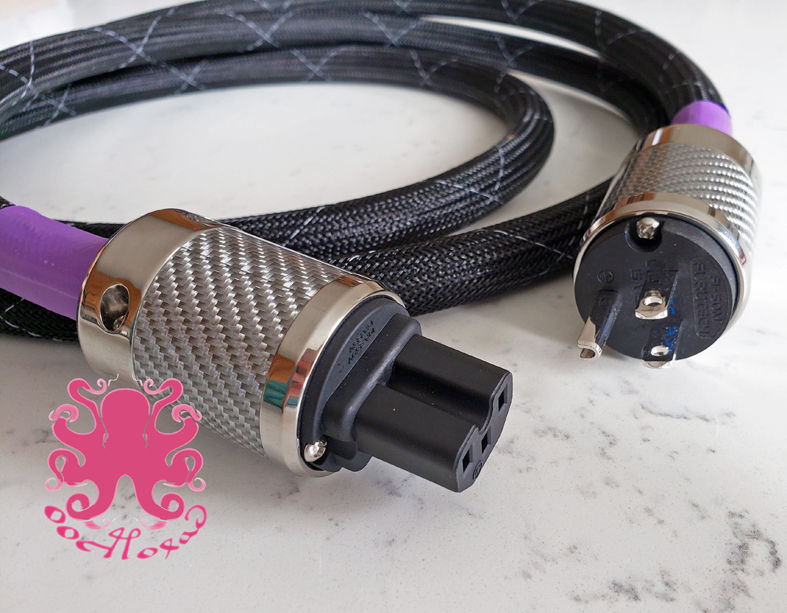

1.0 meters  comes with velvet protective pouches, velvet storage bag and warranty card  (pictures shown above is 1.5 m cable, for custom length, please contact us)



Diameter:



17 mm



Application:



Power amplifier, power conditioner

​

**made to order, leading time about 14 business days
